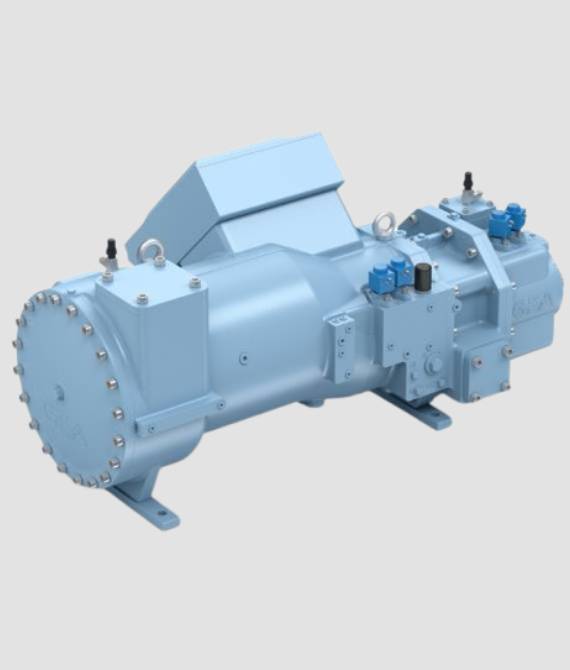

Making the use of ammonia simpler and safer

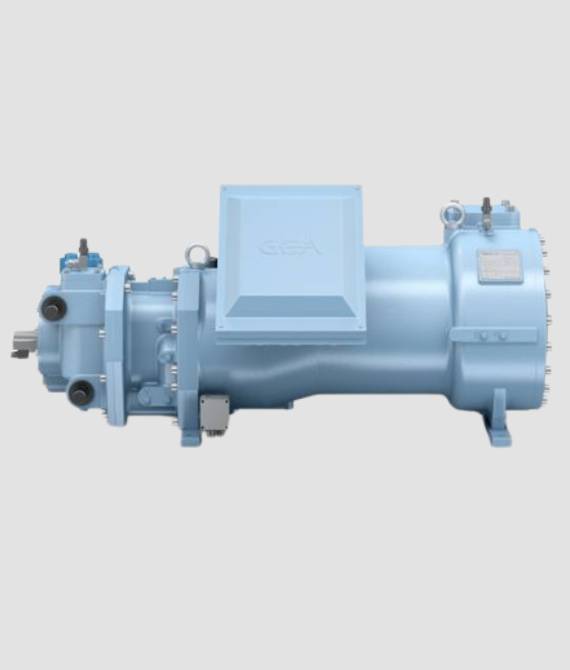

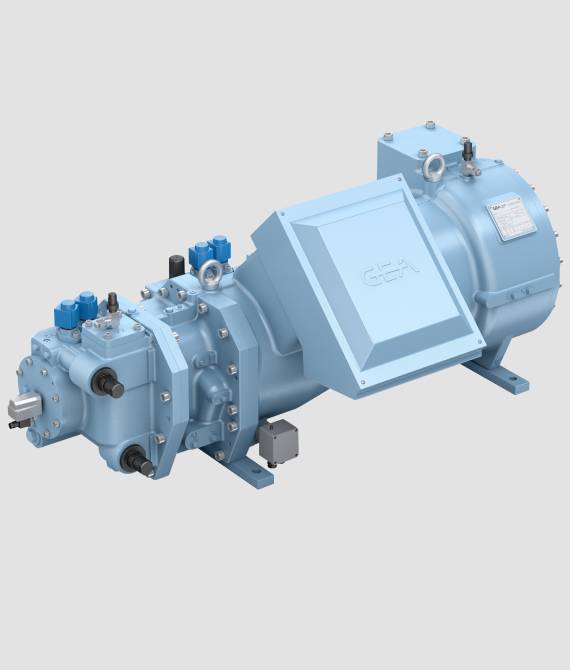

The GEA CompaX semi-hermetic screw compressor is designed to simplify ammonia-based systems. Its shaft seal-free design reduces refrigerant leakage risk, while low vibration and sound levels make it suitable for residential or densely populated environments. Built on over 50 years of screw compressor expertise, the CompaX range supports efficient and reliable ammonia refrigeration.
The CompaX 350 and 400 operate at 2,940 rpm, delivering flow volumes of 321 and 372 m³/h. With speeds up to 6,000 rpm and multi-compressor capability, they provide flexible capacity across applications. These compressors combine the benefits of ammonia with stepless Vi control, a wide speed range, excellent energy efficiency, and high levels of safety and reliability. Thanks to their compact design and high degree of integration, GEA CompaX compressors provide cost-effective, space-saving solutions. The semi-hermetic range ensures reliable, energy-efficient, and low-maintenance performance for a wide variety of cooling applications.

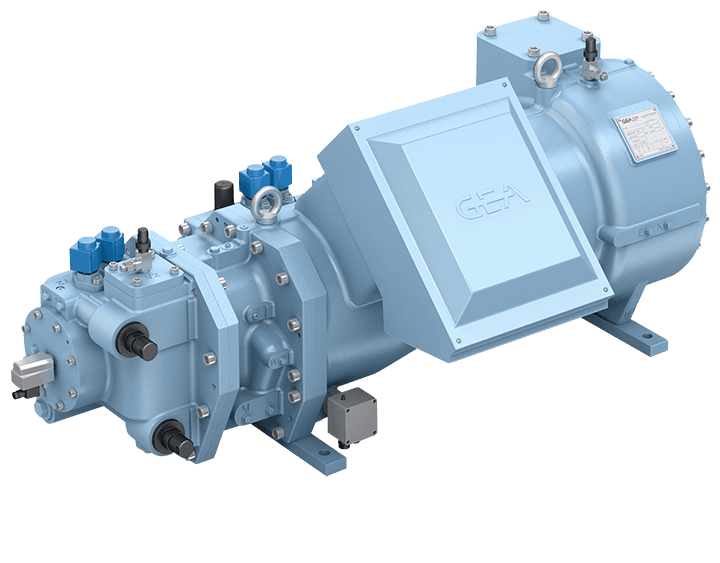

Key features and highlights
- Semi-hermetic screw compressors for a simple use of ammonia
- Energy-efficient ammonia refrigeration
- Compact design for easy system integration
- Wide operating range
- Fewer connections and no shaft seal
- Low noise and vibration
Technical data
| Model | Swept volume flow at 50 Hz / 100/87 Hz¹ (m³/h) | Cooling capacity at max. Hz (kW) R717, 0/+30 °C | Dimensions (mm) - length | Dimensions (mm) - width | Dimensions (mm) - height | Suction side (mm) | Discharge side (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| GEA CompaX 350 | 321 / 642 | 630 | 1434 | 797 | 656 | DN125 | DN80 | 789 |
| GEA CompaX 400 | 372 / 744 | 745 | 1463 | 797 | 656 | DN125 | DN80 | 807 |
¹ types 350 and 400 max. 100 Hz, types 700 and 900 max. 87 Hz
